Plot breakpoint distribution among time points for each group
Arguments
- res_list
A list of the Trendy analysis results, output of
run_Trendy()- group
(Optional) A character vector of group names to be plotted. If NULL, all groups in the input list will be used (default is NULL)
- fontsize
(Optional) Font size for the plot (default is 8)
- ...
Additional arguments to be passed to
Trendy::topTrendy()
Examples
data("example")
example_obj <- normalise_to_start(example_obj)
example_obj_list <- split_groups(example_obj)
example_obj_merged_list <- merge_replicates(example_obj_list)
example_obj_merged_list <-
calc_feature_property(example_obj_merged_list, threshold = 0)
# no missing value in the example dataset, so imputation is not necessary
example_obj_merged_imp_list <- impute_groups(example_obj_merged_list)
# "untreated" group has only 3 time points, so Trendy analysis will not be
# performed for this group
# example_res_list <- run_Trendy(example_obj_merged_imp_list, maxK = 1,
# minNumInSeg = 2, meanCut = 0)
data("example_res_list")

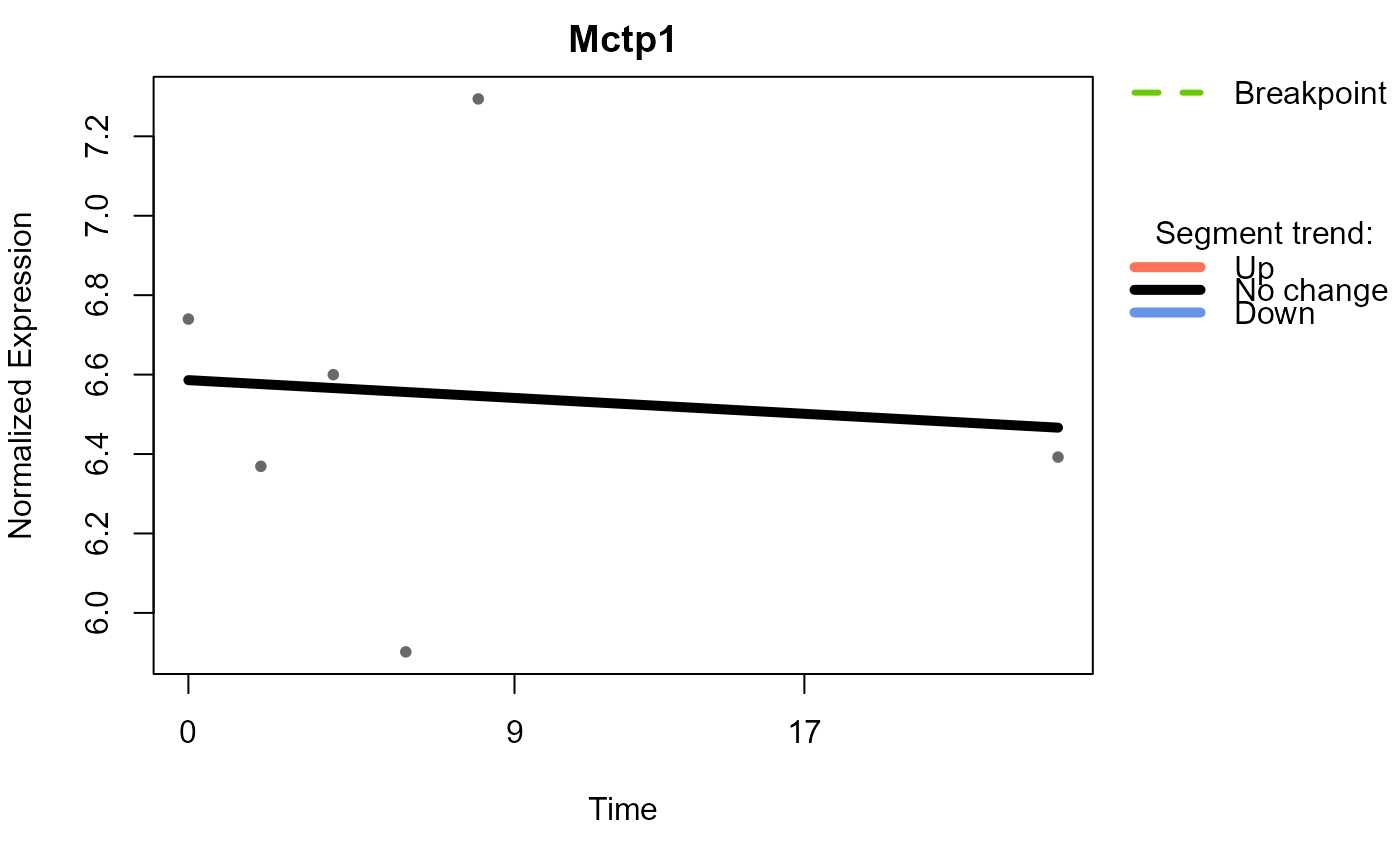

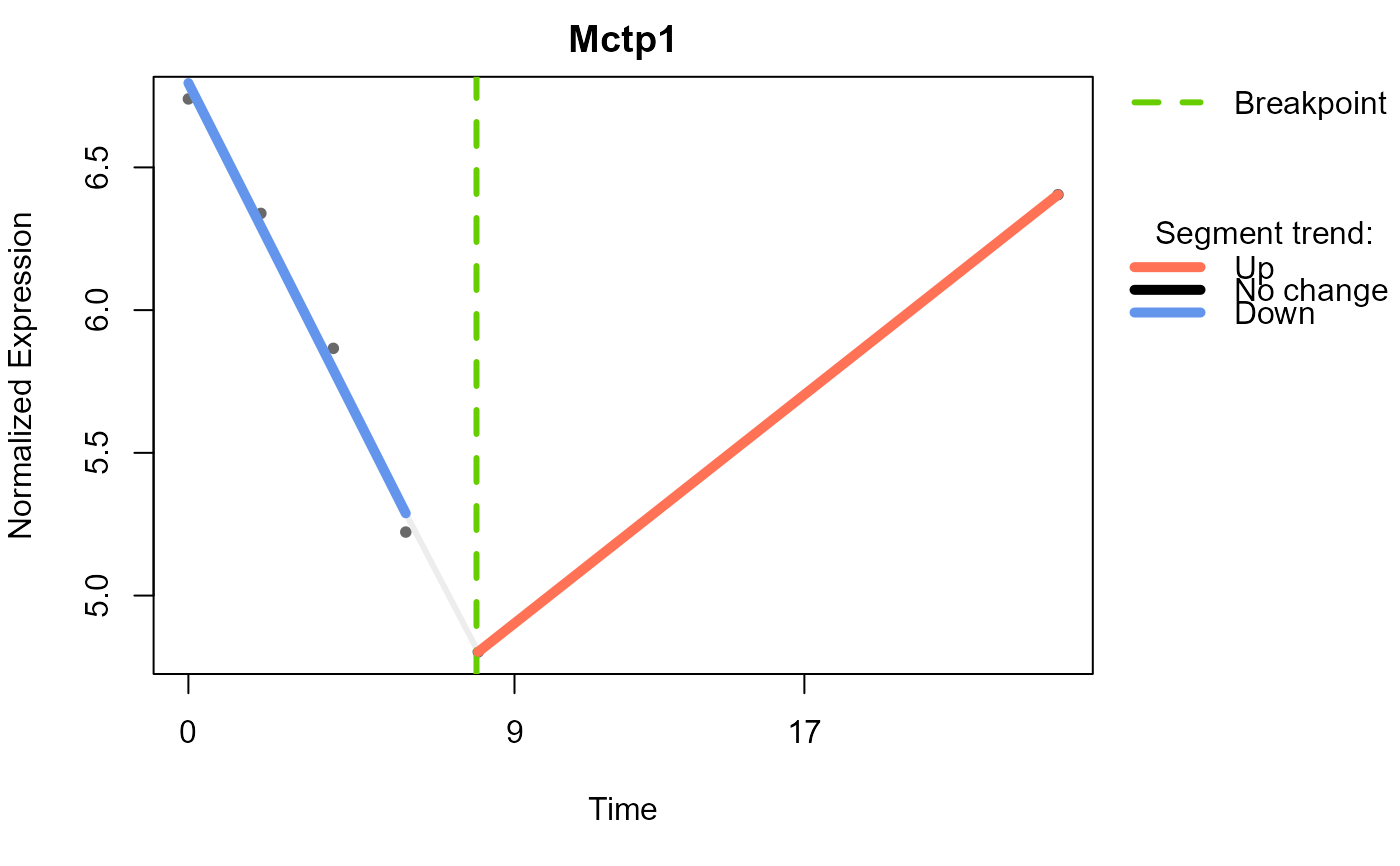

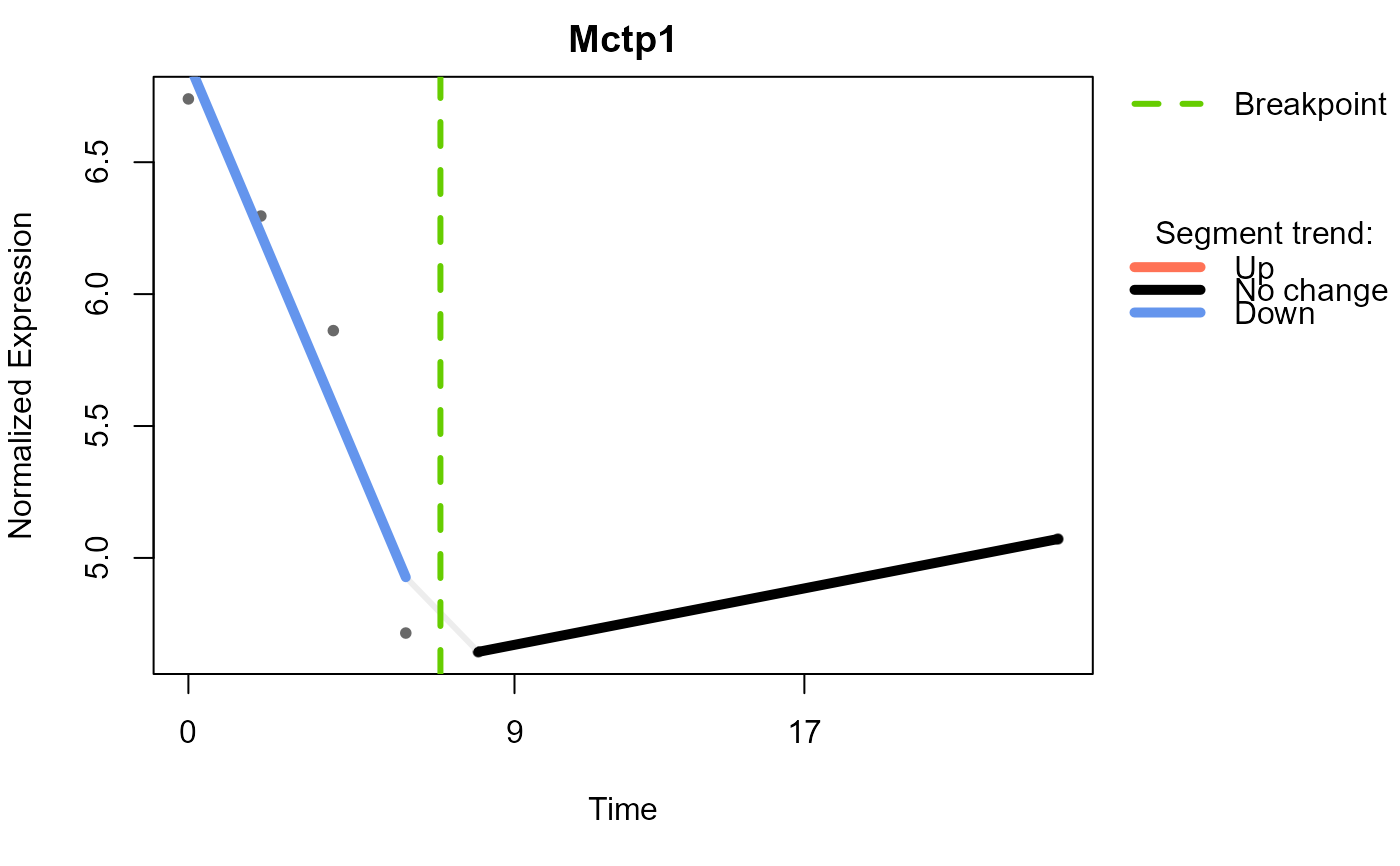

plot_segments(example_obj_merged_imp_list, example_res_list,
feature = c("Mctp1"))
#> Plotting segmented regression for group: IFNbeta
#> Plotting segmented regression for group: IFNgamma
#> Plotting segmented regression for group: LPS

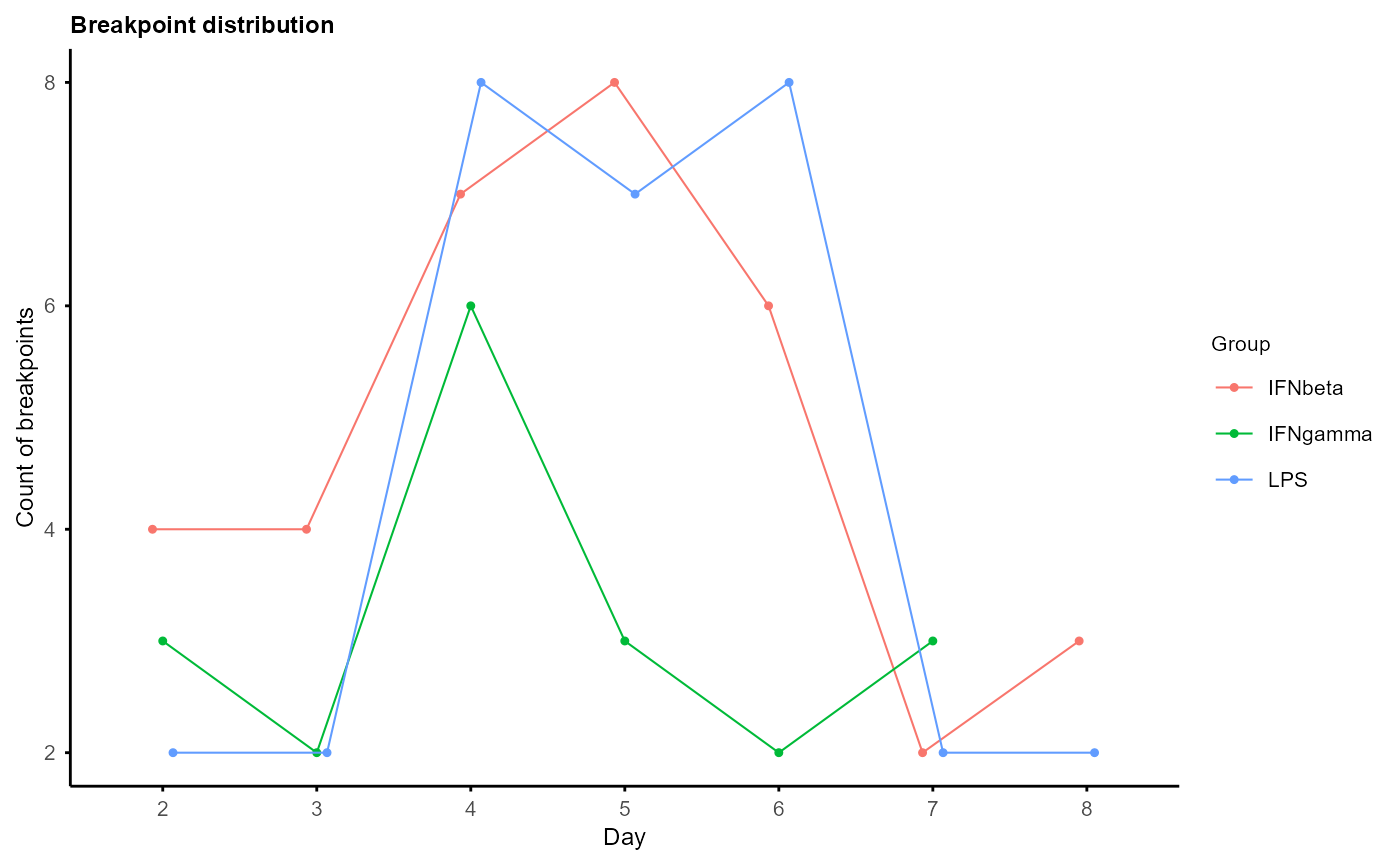

plot_breakpoints(example_res_list)
#> Warning: number of columns of result is not a multiple of vector length (arg 9)
#> Warning: number of columns of result is not a multiple of vector length (arg 3)
#> Warning: number of columns of result is not a multiple of vector length (arg 5)
trendy_summary <- summarise_Trendy(example_res_list)
#> Warning: number of columns of result is not a multiple of vector length (arg 9)
#> Warning: number of columns of result is not a multiple of vector length (arg 3)
#> Warning: number of columns of result is not a multiple of vector length (arg 5)
trendy_list <- extract_segment_trends(trendy_summary)
